iPad 4 Wi-Fi Front Facing Camera Replacement

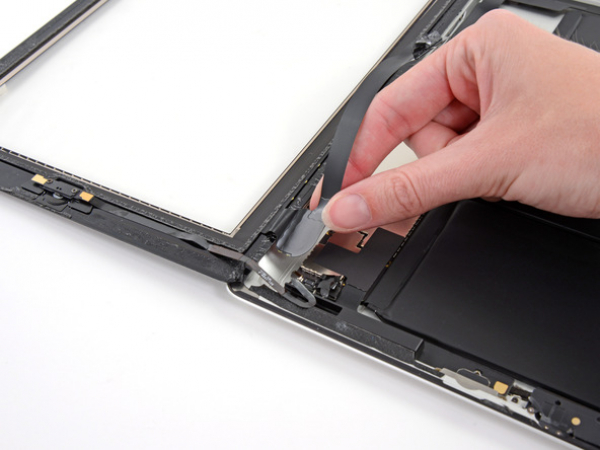

If there's a piece of electrical tape covering the Wi-Fi antenna, speaker cable and the home button ribbon cable, remove it.

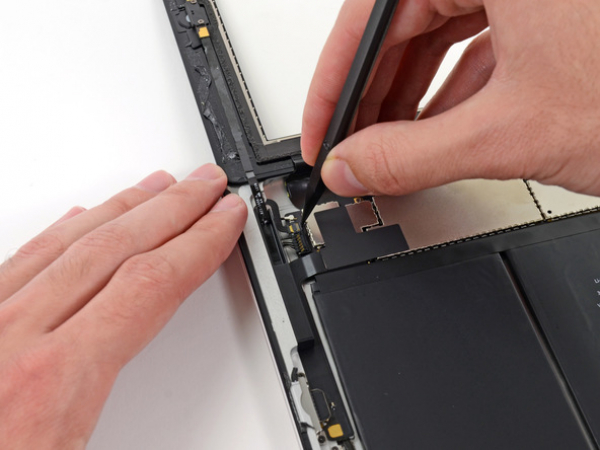

Lift up the flap retaining the home button ribbon cable ZIF connector.

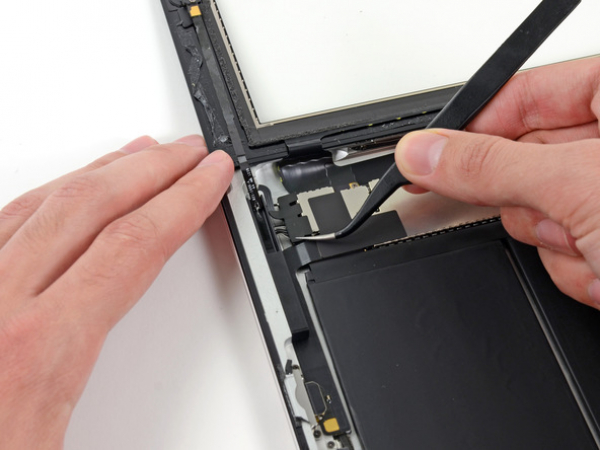

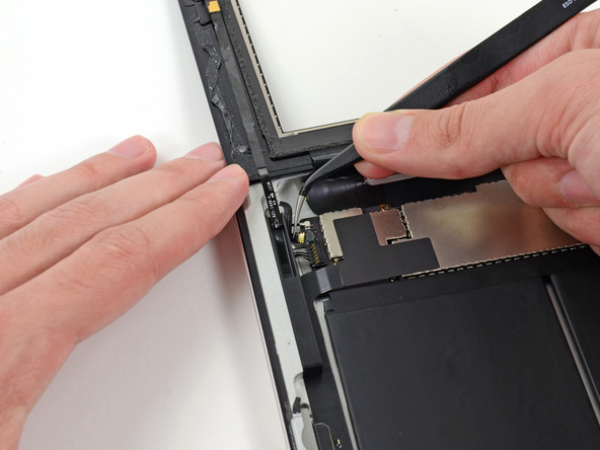

Pull the home button ribbon cable out of its socket on the logic board. Do this with a pair of tweezers.

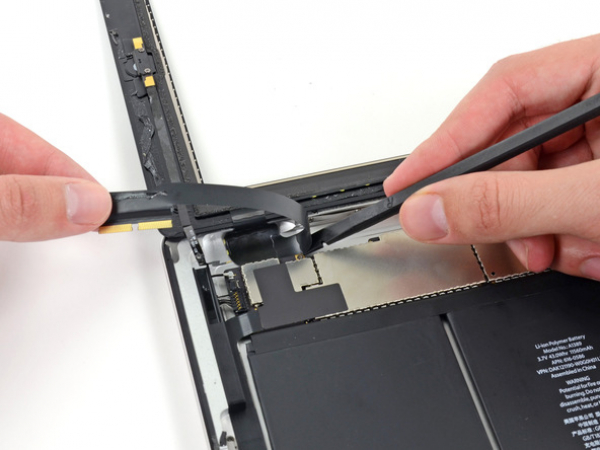

De-route the home button ribbon cable from its niche in the rear case.

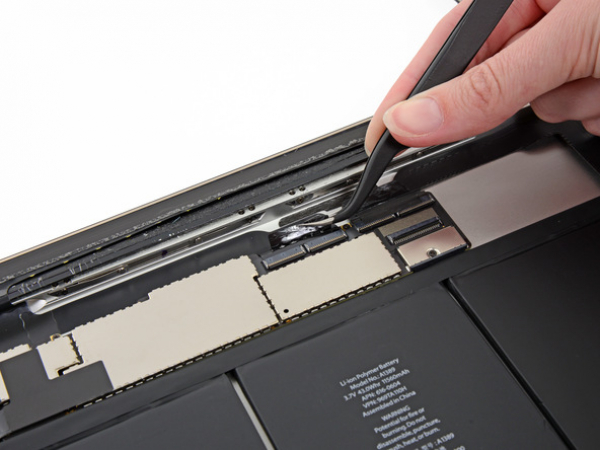

A piece of tape is securing the digitizer ribbon cable to the logic board. Peel it back with a pair of tweezers.

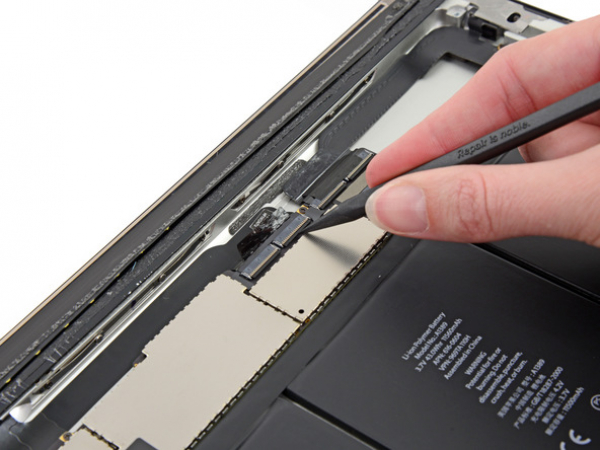

Lift up the retaining flap on both digitizer ribbon cable ZIF connectors.

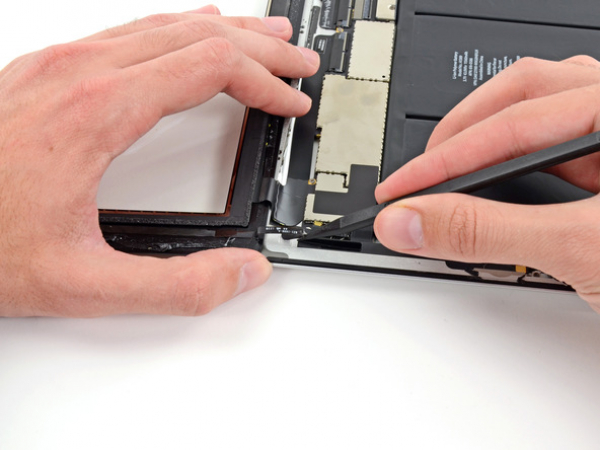

Loosen the adhesive under the digitizer ribbon cable with the flat end of a spudger.

Take out the digitizer ribbon cable out of its sockets on the logic board.

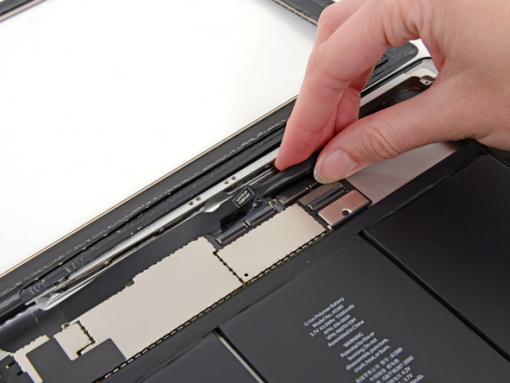

Peel back the digitizer ribbon cable. Separate the cable from the adhesive securing it to the rear aluminum case with the flat end of a spudger.

Take the digitizer ribbon cable out of its niche in the aluminum frame. Do this with your fingers.

Separate the front panel from the iPad.

Peel back the adhesive tape covering the front-facing camera connector with a pair of tweezers.

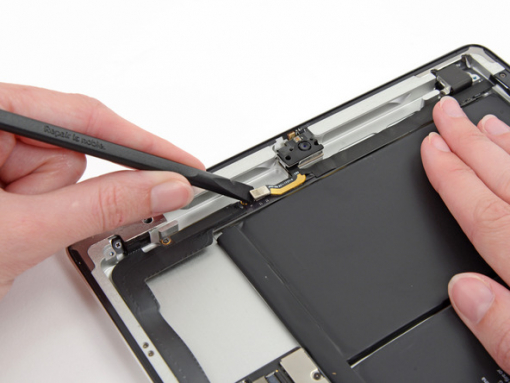

Lift the front-facing camera slightly out of its socket on the headphone jack assembly with the flat end of a spudger.

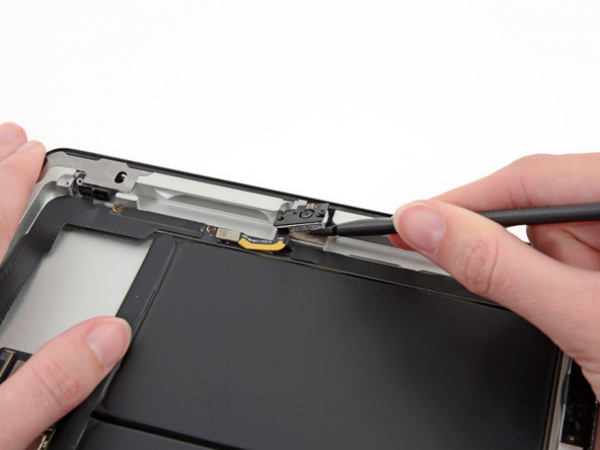

Using the flat end of a spudger take the front-facing camera out of its niche in the rear case.

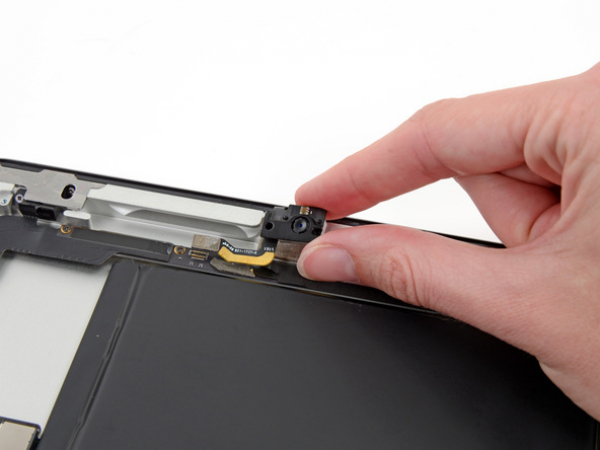

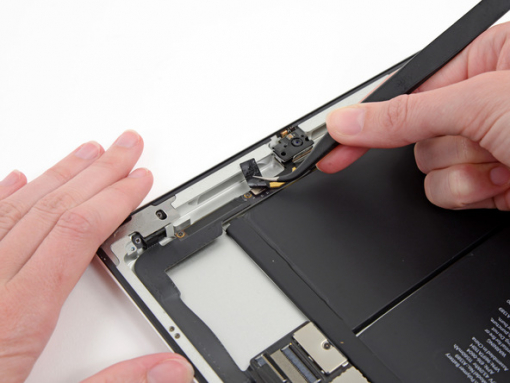

Lift the front-facing camera completely and remove it from the iPad.
